全新LLM-ARRAY摇头黄金阵列
文章来源:深圳市思奥特光电科技有限公司  发布日期:2018-11-21 15:30:22






摇头激光阵列是激光和LED结合的跨时代革新产品,粗细激光光斑任君选择,充分满足夜场和舞台演出场所的各种灯效需求。
This is a innovative combination of golden LED beam lights and impressive lasers with fat or thin beams are available. The moving head feature can meet the demands of the light effect applications.

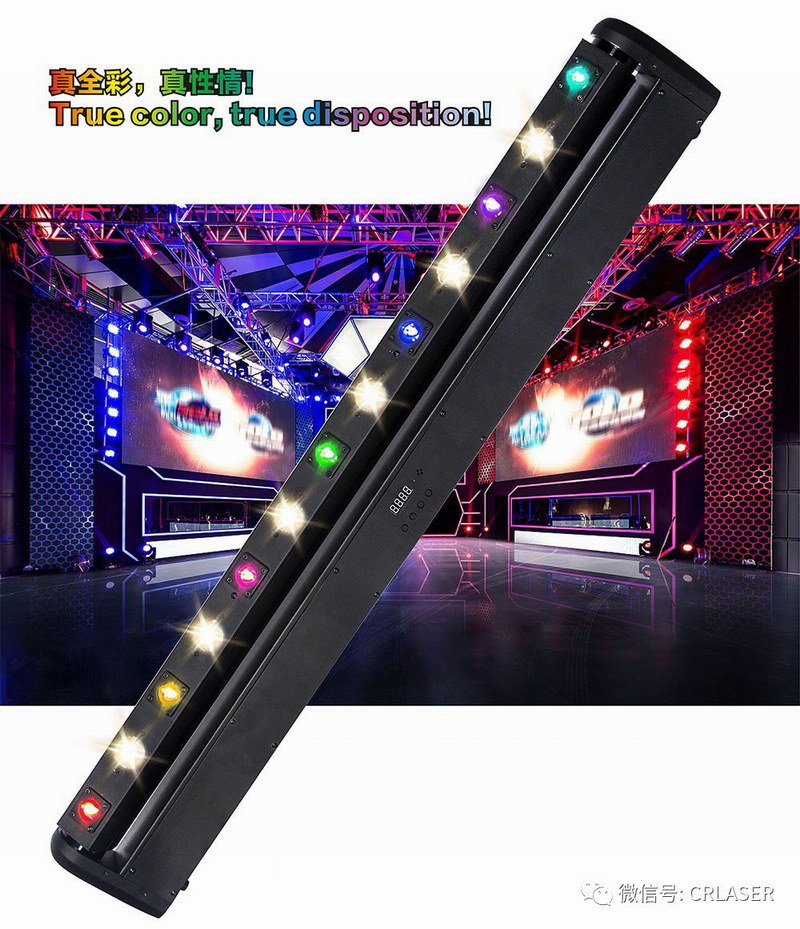

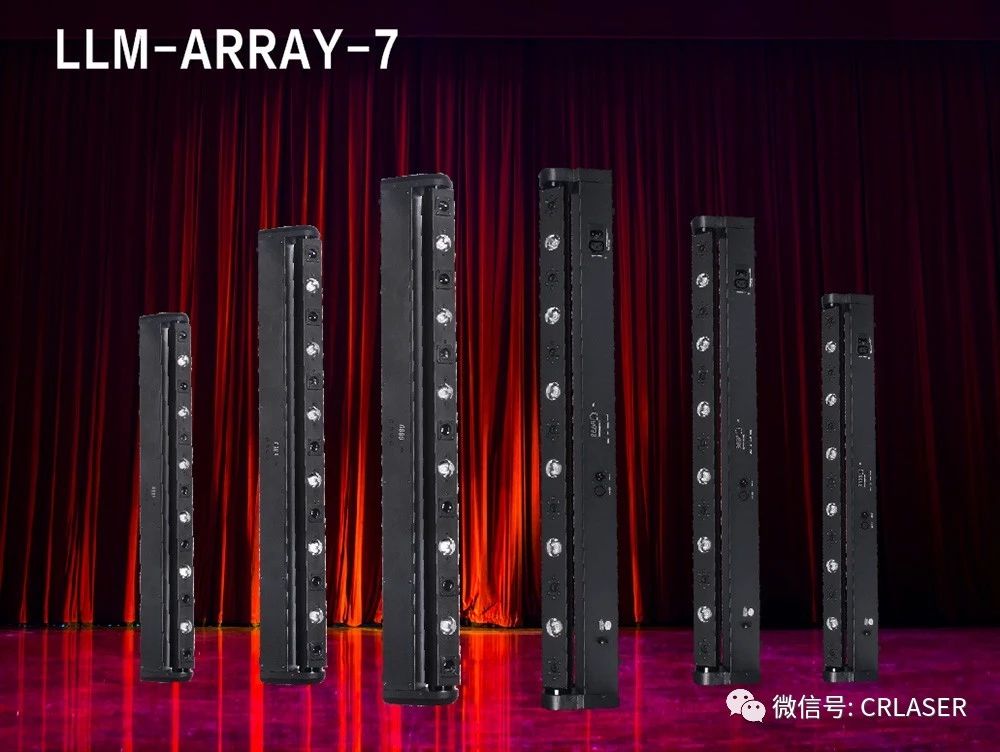

        LLM-ARRAY-7摇头激光阵列承载了思奥特15年的专业激光技术与不断创新的企业精神,6*3W暖色LED(3000K)+7颗激光器,粗细光斑,单色真全彩任君选择。180°旋转机身,速度可控,单控、跑马、频闪、自走、声控、DMX随心所欲满足你的灯效需求。
Llm-array-7 shaking laser ARRAY bears 15 years of professional laser technology and innovative enterprise spirit, 6*3W warm color LED (3000K) +7 lasers, thick and thin light spots, monochrome true full-color as you choose. Rotate 180 ° fuselage, speed control, Single control, horse running, stroboscopic, self - walking, voice control, DMX follow one's inclinations meet the demand of your lighting effects.





      我司运用精密电子技术将单颜色划分为256个分量(0-255)调节激光颜色分量和出光搭配可调试出16777216种颜色,实现真正意义上的全彩激光灯。
Our company uses the precision electronic technology to divide the single color into 256 components (0-255). By adjusting the laser color component and the outgoing light collocation, we can debug 16777216 colors to achieve the full-color laser light.

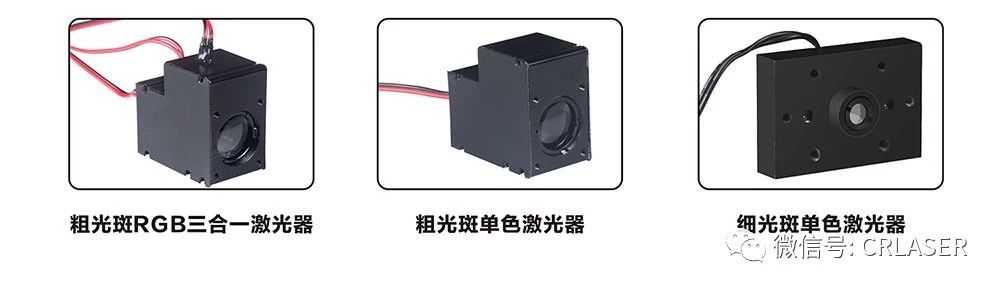

 三合一激光器
Three in one laser
      我司采用三合一激光器,可使合光更精细,出光更完美,维修更方便、使用寿命更长。
We use three-in-one laser, which can make the light more fine, produce more perfect, maintain more convenient and last longer.

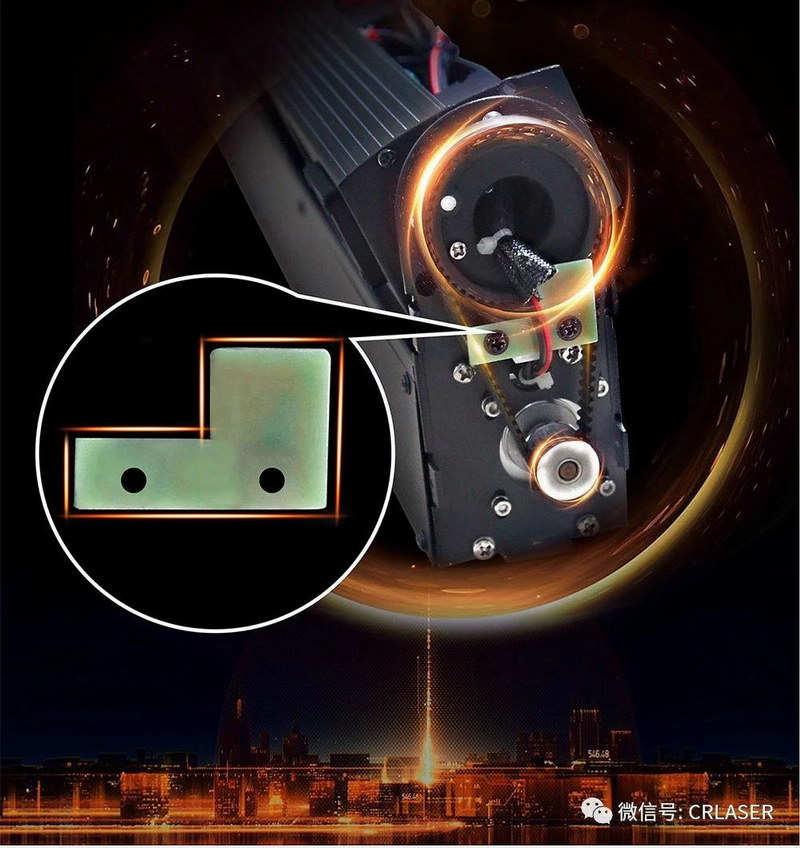

霍尔复位
Hall reset
    在产品的复位工作上我们采用高端的霍尔复位技术,根据霍尔效应制作的一种磁场传感器,能高精准的复位,阻止复位时的机壳碰撞,保护电机,增长使用寿命。
In the work of product reset, we use high-end hall reset technology. According to hall effect, a magnetic field sensor is made, which can be highly accurate reset to prevent the housing collision when reset, protect the motor and increase the service life.

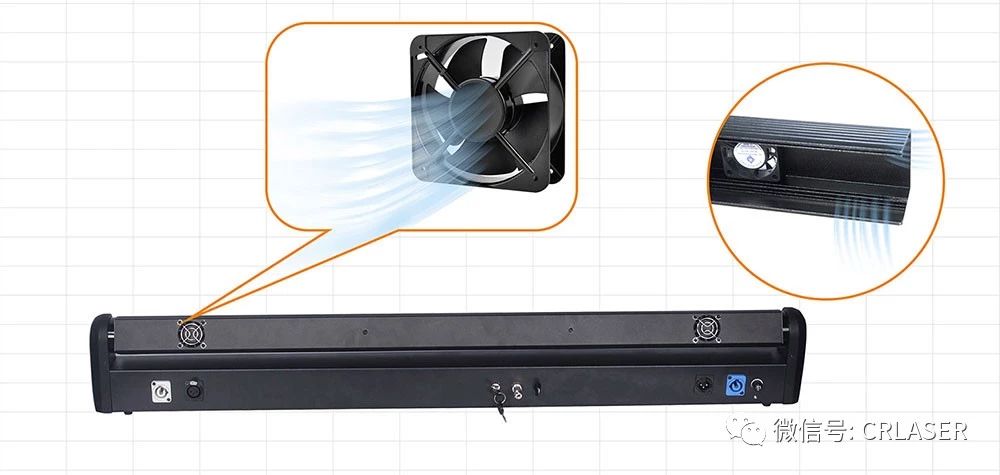

超强散热
Super cooling
       我司通过结构设计,将热气引入后盖铝制凹槽中,然后通过风冷系统有效散热,有效保护各电子器件。
Through the structural design, we introduce the hot air into the aluminum groove of the rear cover, and then effectively dissipate the heat through the air cooling system to effectively protect the electronic devices.






出光微调技术
Fine tuning technology for output light
通过DMX通道或手动调控将激光器的初始出光位进行上下浮动的调节,多台联机时可通过该技术简单方便的将所有机器的初始出光位水平。
Through the DMX channel or manual control, the initial exit bit of the laser can be adjusted to float up and down, and the initial exit bit level of all the machines can be easily adjusted by this technology.






功能特点Features
●LED 光束:  3W 黄金色 LED光束 ( 3200K/7°)
●激光颜色:红光 638nm/200mW
                   绿光 520nm/100mW
                   蓝光 450nm/500mW
●180°旋转机身,可控制旋转速度。
●自走+声控+DMX,多种控制方式,随心所欲。
●可自调声控敏感度。

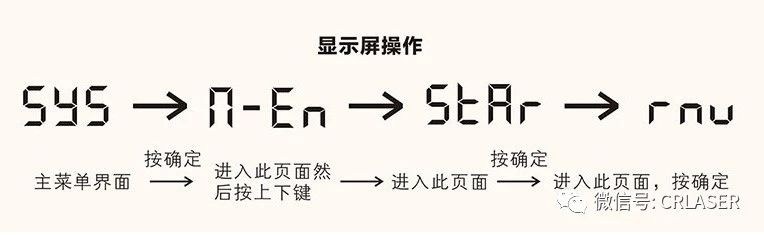

●LED数码显示,4键轻触开关,操作轻松方便
●专业的POWERCON电源接口。

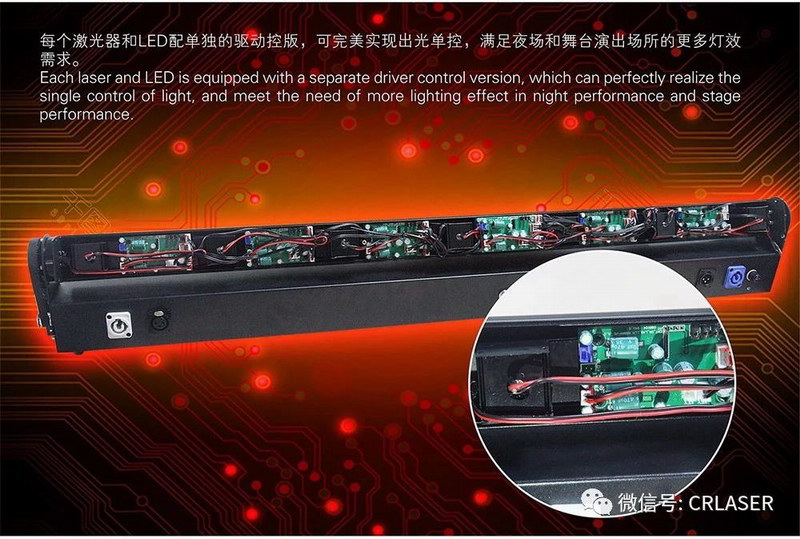

●激光束和LED灯珠可单独控制,主控联机,跑马效果。

●LED Beams: 3W Golden LED chips with small angle lense ( 3200K/7°)
●Laser color:   RED  638nm/200mW
                        GREEN 520nm/100mW
                        BLUE 450nm/500mW
●180 °moving head, speed can be set on board or light console.
●Working modes: Auto, Sound activate, DMX
●Adjustable sensitivity of Sound control
●LED digital display, 4 operating buttons make the use easily.
●Professional POWERCON in/out connectors.
●The LED and Laser beams can be pixel controlled separately, with the master/slave control and intelligent water follow effect.

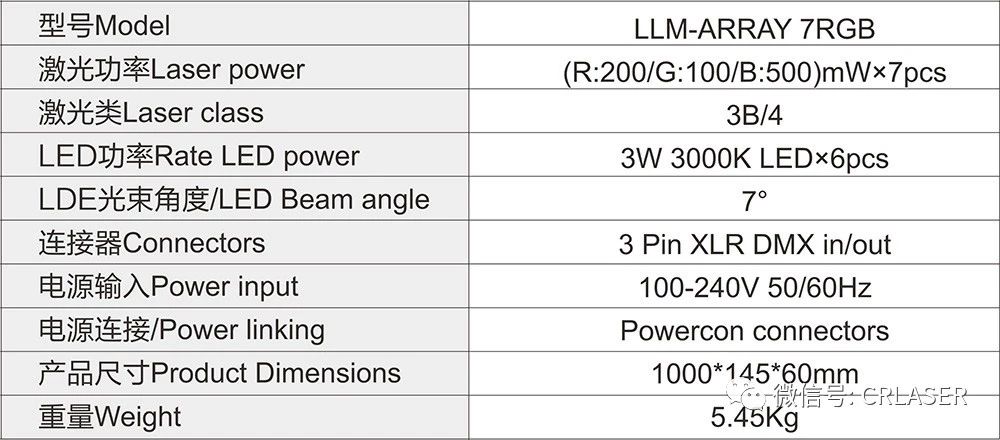

品参数Product paramete
